FerroForcia side-door hinge sets
for Land Rover Defender 90 / 110 / 127 / 130 up to and including 2016
The hinge sets are universally designed to fit all side doors of Land Rover Defenders 90 / 110 127 / 130 up to and including construction year 2016. These hinges are available in a set for 2-side doors and in a set for 4-side doors through our selling points. You can also go there for price information, questions and possible assembly.
‘’Hinges simply need to function. There’s nothing more annoying than when your doors start hanging due to a rotten and rusty pin. And the brown stripes that run over your painted bodywork after every rain shower or after every oil service. That’s not something you want, at least, I don’t. It’s also a shame to have the hinges replaced regularly, as steel hinges continue to rust, no matter how well you treat them. In addition, that costs you quite a bit of work. That’s why the principle of our hinges is quality. Making sure that once you buy our hinge set once, you no longer have to worry about replacing hinges as long as you drive that car.’’ – Dennis van Haandel, ceo Van Haandel Metaal and initiator FerroForcia

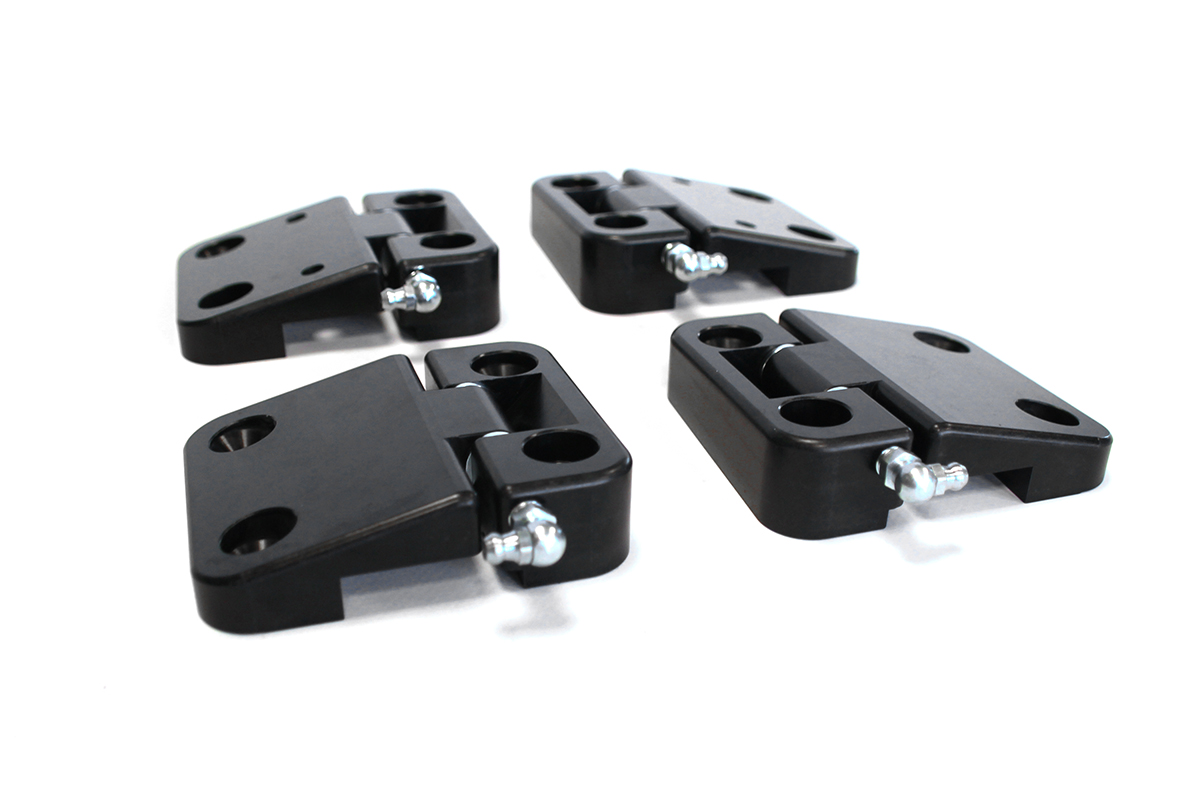

Hinges set for 2-side doors
Hinges set for 4-side doors
Benefits
High-quality aluminium for durability
Barely effect from weather circumstances due to hard anodizing layer and special coating
Neat design with black-coloured look
Easy to mount
Including grease nipple for easy maintenance
Smooth door movement
Specifications
| Part numbers | HSS2-001 (2-side doors hinge set (assembled / black anodized) HSS2-001-U (2-side doors hinge set (unassembled / paint yourself) HSS4-001 (4-side doors hinge set (assembled / black anodized) HSS4-001-U (4-side doors hinge set (unassembled / paint yourself) |
| Material | Aluminium hinge (hard anodized and special coating) Brass rings (galvanized) Tool steel pen (galvanized) Steel grease nippel (galvanized) |
| Application | Land Rover Defenders 90 / 110 / 127 / 130 up to and including 2016 |
| Colour | Black with silver grey accents |

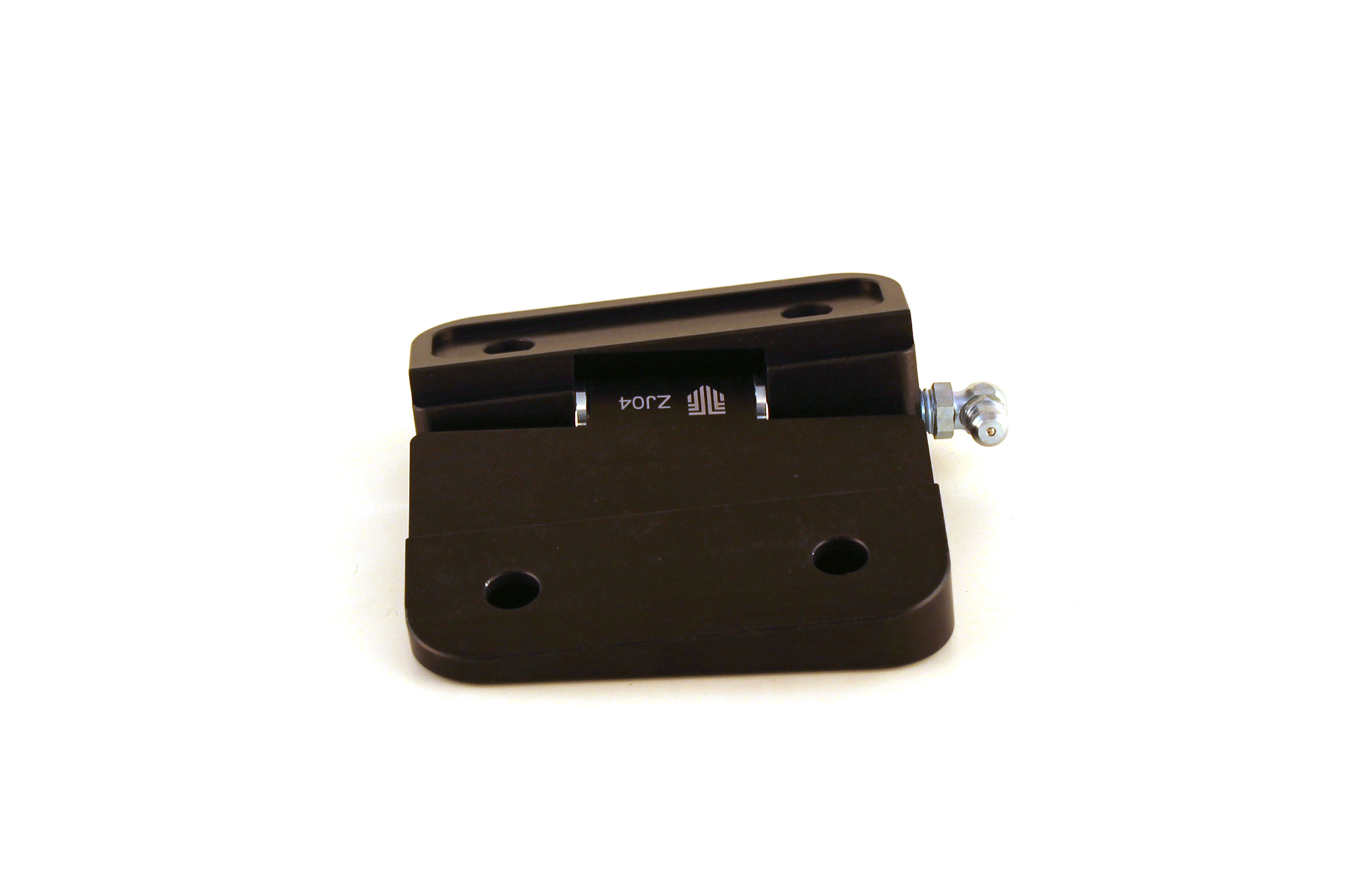

| Recognizability | FerroForcia logo laser marked at inside hinge |
MATERIAL
The combination of high-quality aluminium, hard anodized layer and special coating ensure that weather circumstances have barely effect on the hinges. No more rust involved. The hinge has a black look and is nicely finished. Due to the material treatments, the hinges do not need to be varnished anymore. They are ready for assembly.
DESIGN
The hinge is well thought out and a neat design has been chosen. Everything for the quality and the eye. The hinge is not rugged, but has soft gradients and lines for a sleek, subtle look.
In order to let the hinge do its work, it’s decided to use galvanized brass rings in between the two aluminium parts. The pivot point therefore continues to move easily. Brass rings are chosen as these do not break through cold or heat. The rings are galvanized to keep them looking nice, so they do not turn green in time. In addition, the silver grey matches the black colour nicely.
ASSEMBLY

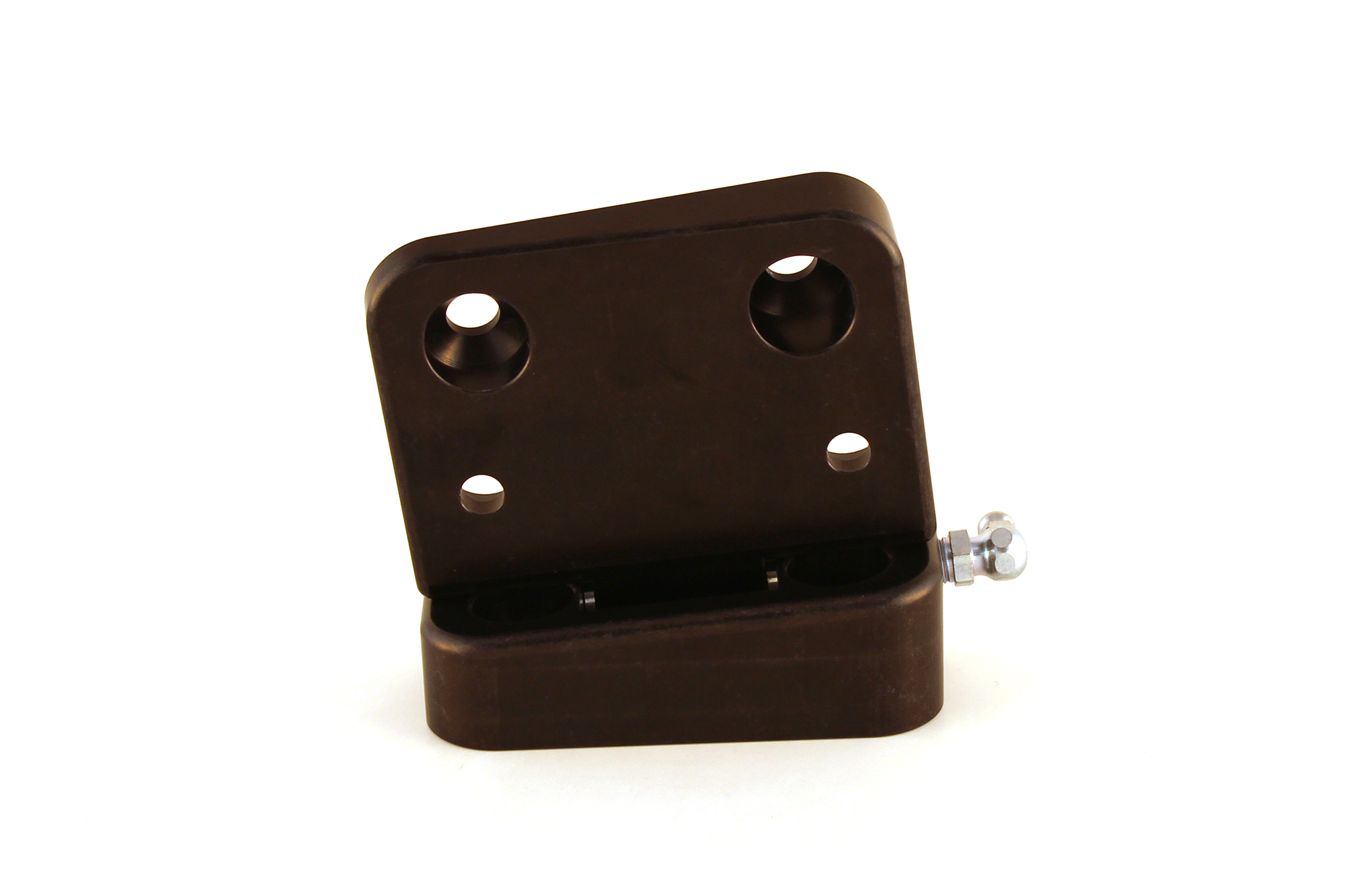

Drilling and filing is not necessary during assembly. The hinge connects seamlessly with the sheet metal of the door. If the bodywork of your Defender is slightly curved, you can easily compensate for this by using filler plates. Both original and imitation bolts can be used for mounting. The hinges are greased upon delivery. Each hinge set consists of two hinges suitable for mirror mounting. These can be recognized by the 2 extra holes of Ø7.
At our YouTube channel you can also find mounting videos for each door (left door with mirror, left door without mirror, right door with mirror).
WHAT DO YOU NEED?
Our hinge sets are excluding bolts, nuts, revets and shims for mounting. What do you need?
Hinge set for 2 side doors, including:
- 8x M8x40
- 8x M8x55
- 8x M8 self-locking nut
- 8x M8 revet
- Possibly a few filler plates
Hinge set for 4 side doors, including:
- 8x M4x40
- 16x M8x55
- 4x M8x80
- 4x M8x90
- 16x M8 self-locking nut
- 16x M8 revet
- Possibly a few filler plates
Ensure that the clips from the front door bar do not fall behind the sheet metal when disassembling. The same applies to the weld plate with nut at the rear door bar. These clips and plate are required for mounting the FerroForcia hinge sets. These can often be re-used because they are not exposed to weather conditions.
GREASE NIPPLE
The hinges contain a grease nipple and internal channels in the hinge pin to get the maintenance grease in the right places. This allows the entire inside of the hinge, every corner and hole, to be greased. This ensures a longer lifespan for the hinge.
A grease syringe can be easily clicked onto the nipple to grease the hinge. In this way you prevent ‘dirty’ stripes over your door after maintenance, since the grease is not applied from the outside of the hinge.

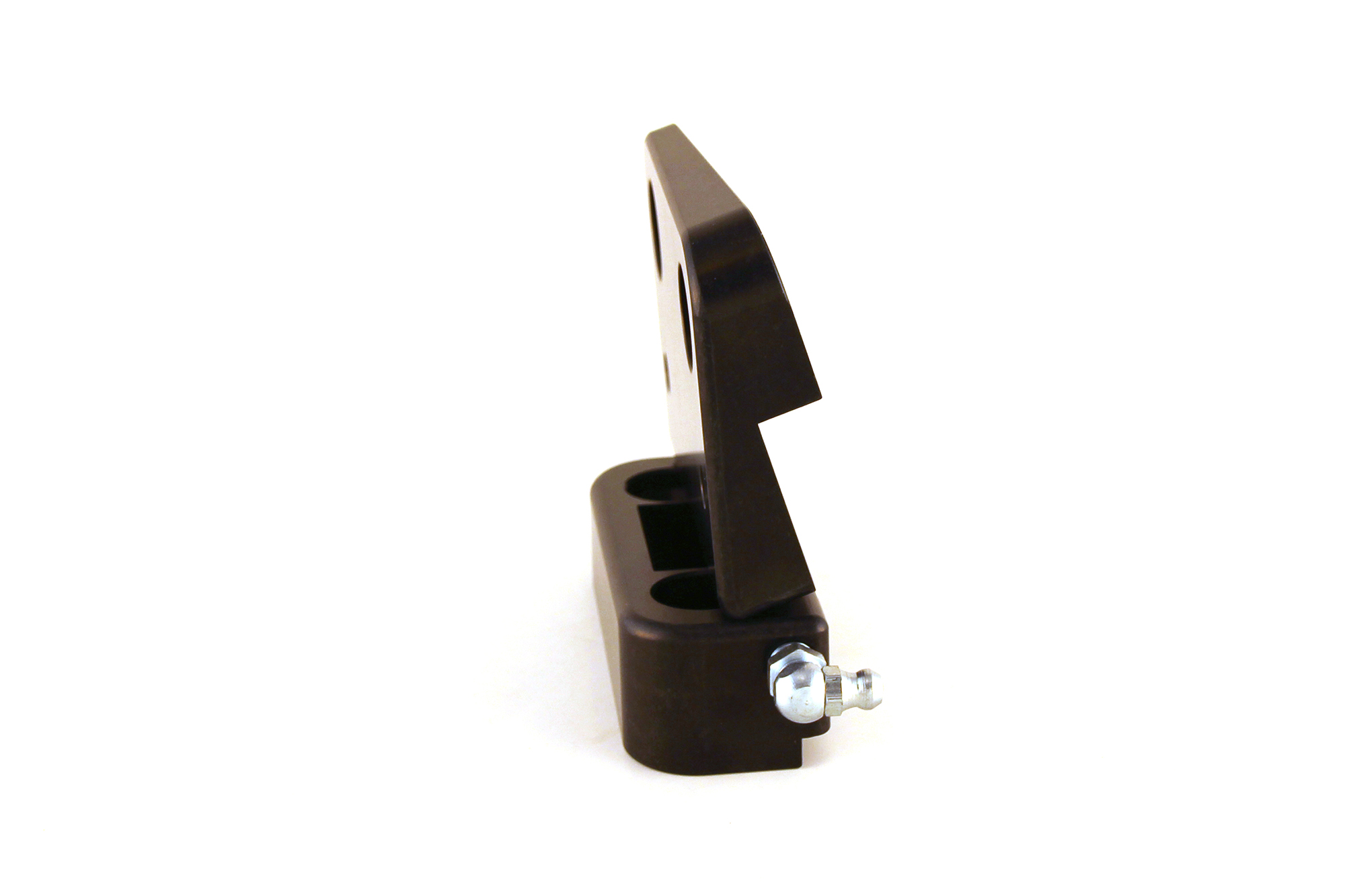

The grease nipple is perpendicular to the hinge, so you can always access it with the grease syringe, regardless of any extra accessories like rocksliders or silk protectors. The grease nipple has a conical wire, so it’s mounted solid to the aluminium part of the hinge.
